Detalhes do produto:
Condições de Pagamento e Envio:
|
| Material: | Ferro | Aplicativo: | Máquina de ligação de fios duplos |
|---|---|---|---|
| OEM: | Aceite OEM | Tela de toque: | Siemens |
| transportador: | Tenha um transportador | Diâmetro do fio: | 1/4 - 1 1/4 fio duplo |
| Tipo: | encadernação de fio duplo | Mofo: | Não há necessidade de mudar o molde |
| Largura máxima de encadernação: | 360mm | Min Largura de ligação: | 70mm |
| Peso líquido da máquina: | 300 kg | serviços: | treinamento e instalação no exterior disponíveis |
| Velocidade de trabalho: | 800-1500 livros/hora |

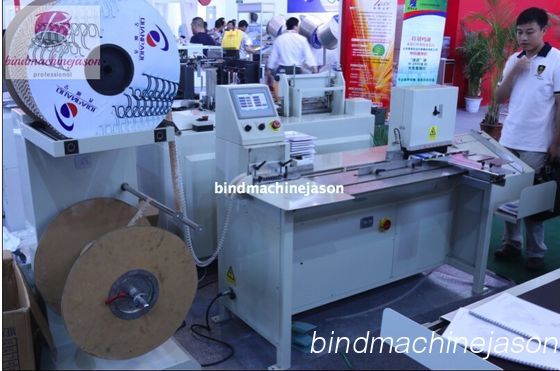

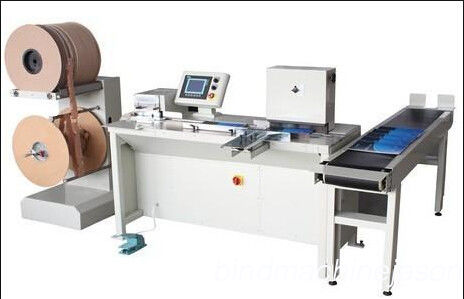

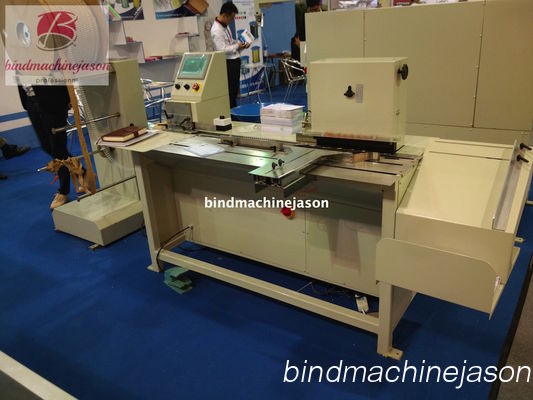

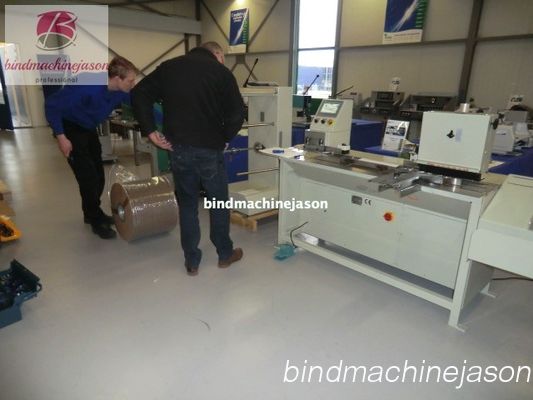

Double wire binding machine DCB360 (1/4 - 1 1/4 ) for notebook
Double wire binding machine DCB360 is a machine close wire o or double wire notebooks,easy adjust and operate.No need change mould,could close double wire size from 1/4 - 1 1/4.
Mainly used for print factory which produce notebook or desk calendar.Production bind edge size <360mm,all could be close by this machine.
Some customer want notebook with separate small loop wire close,also could be done by this machine.Touch screen there has many function,like wire separate,loops caculate,wire pitch change,and so on.
| Size | Pitch | Notebook binding thickness (mm) | wire o diameter(mm) |
| 1/4 | 3:1 | 4.9 | 6.4 |
| 5/16 | 3:1 | 6.3 | 7.9 |
| 3/8 | 3:1 | 7.9 | 9.5 |
| 7/16 | 3:1 | 9.3 | 11.1 |
| 1/2 | 3:1 | 10.9 | 12.7 |
| 9/16 | 3:1 | 12.2 | 14.3 |
| 5/8 | 2:1 | 13.4 | 15.9 |
| 3/4 | 2:1 | 16.6 | 19.1 |
| 7/8 | 2:1 | 19.7 | 22.2 |
| 1 | 2:1 | 22.9 | 25.4 |
| 1 1/4 | 2:1 | 27.8 | 31.8 |
Wire binding machine DCB360 Applcation:
For wire o notebooks and desk calnedar wire o or double wire closer
Notebook wire o binding Video
https://www.youtube.com/watch?v=zzBJIpvy-Zc (in Thailand print factory)
https://www.youtube.com/watch?v=XqJXRyjbXr8&t=5s (chinese print factory)
Print facotry if mainly do notebooks wire bind,i think this wire bind machine is most sutible for you,easy adjust,stable,no mould need change mould,so it also save your cost.
Technical data:
| Wire o bind Speed | 1000 books per hour |
| Air pressure | 5 - 8 kgf |
| Wire diameter available | 1/4 - 1 1/4 |
| Max bind side length | 360mm |
| Electric power | 1ph 220v 50-60hz (other voltage on request) |
| Net weight | 450KG |
Advantages:
1.Easy adjust,control by plc.
2.Change wire size easy,no need change moulds.
3.Could close wire o notebook (first page and background page differ with inner paper)
4.Wide range use for wire o noteboks,could handle almost notebook bind edge size below 360mm
Addional pictures of machine
Tool box for adjust wire size from 1/4 - 1 1/4
Electrical picture,we use Schneider electronica,and touch screen we use Siemens.
One year Guarantee of this machine,if you purchased and get some part wrong,could be repalce new to you,is free,you just need pay courier fee yourself.
Our 360 double wire binding machine is used for binding double wire books, notebooks, wall calendars, etc. It can bind wires from 1/4" to 1 1/4" without changing binding tools. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably.
