Detalhes do produto:
Condições de Pagamento e Envio:
|
| Aplicativo: | Encadernação Twin Loop para calendário e caderno | punção de buraco: | A largura máxima do punção é de 580 mm |
|---|---|---|---|
| Tamanho do anel duplo: | 1/4 - 3/4 | Velocidade: | 1000-1500 livros/hora |
| Material: | Ferro | Obrigação: | Máquina de encadernação de fio Twin Loop |
| PERFURADOR: | Perfuração do furo | Faca alimentadora: | 5 faca de alimentação |
| Espessura do alimentador: | 3 mm no máximo | Tempos de soco: | no máximo 5 vezes |
| Espessura máxima: | 15mm | Folha máxima: | 580 mm x 800 mm |
| Min Folha: | 120 mm x 105 mm | Serviço: | Instalação e treinamento no exterior disponíveis |
| Garantia: | 12 meses | OEM: | Pode ser adicionar o seu logotipo |

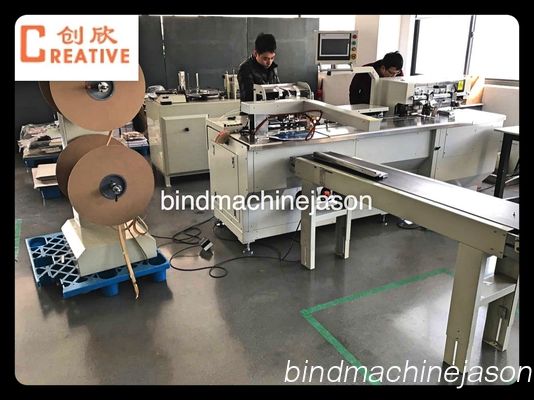

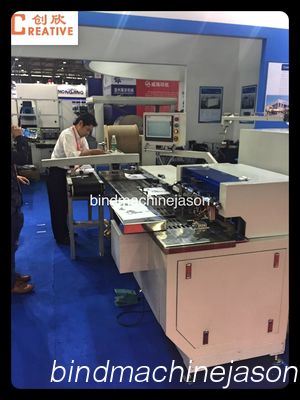

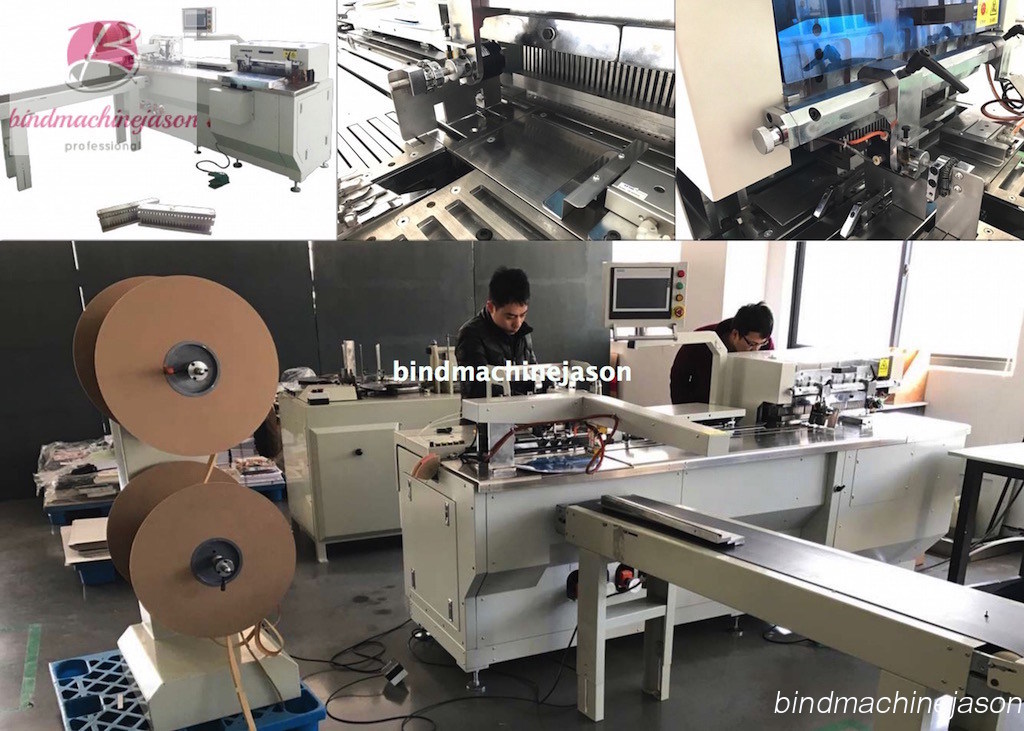

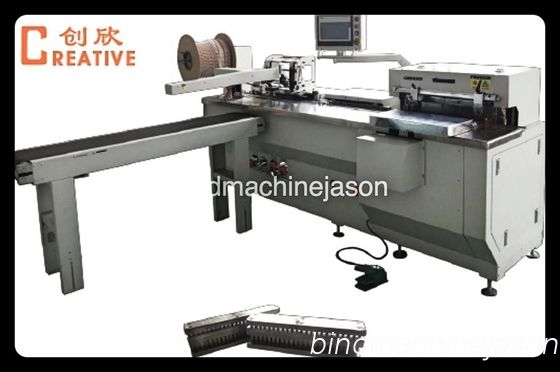

Twin loop wire binding machine with punching function PBW580 for calendar
Twin loop wire binding machine and hole punching inline PBW580 Description:
PBW580 twin loop wire binding machine include two function, Twin loop wire binding function and paper hole punching function,total 3 actions,notebook feeder,punch,then push finger catch punched notebook to double loop wire binding part,then close wire o,final be deliver to conveyor. Or calendar feeder,punch,then push finger catched calendar to twin loop wire binding part,then drop hanger,final be deliver to conveyor.
Notebook :Stacker → Punching → Hanger → Closing → Delivery Conveyor
Calendar: Stacker → Punching → Closing → Delivery Conveyor
Twin loop wire binding& punching inline machine Application:
PBW580 twin loop wire binding machine is advanced machine in wire binding finish area,could be used in produce notebook,desk calendar and calendar double ring wire production.
Twin Loop wire binding and hole punching in Notebook area :
Have two operate situation,notebook with same bind edge like below picture
Video upload in youtube :
https://www.youtube.com/watch?v=ipgABRhvep8
If notebook with same size (cover and background size same with inner paper size), only need one people operate.
Notebook with differ size (cover bigger than inner paper),like below picture
Video upload in youtube :
https://www.youtube.com/watch?v=HC0UCRt8dQQ
If cover bigger than inner paper,need punch cover advance,and then do video show,need two people together
Twin loop wire bind &punch in desk calendar area
In common,hard Cover could be punch with inner paper together.so only one people could handle.
Video do bind& punch for desk calendar
https://www.youtube.com/watch?v=_WJuOkT33uc
Twin loop wire binding &punch in calendar area
Calendar is a traditional gift ,if you are manufacture,please do not hesitate to contact us,this machine you deseve it.
Video wire o bind&punch for calendar:
https://www.youtube.com/watch?v=dstf4hwGd-Y&t=2s
Machine Technical data:
| speed | 600-1500 production/hour |
| Air pressure | 5-8 kgf |
| Wire o diameter | 1/4-3/4 |
| Max size of paper | 580mm x 800mm |
| Min size of paper | 120mm x 105mm |
| Max punch thickness | 5 times total 15mm |
| Electric power | 3ph 380 |
| Max punch edge size | 580mm |
| Max bind edge size | 580mm |
Machine advantage:
1.It combines auto punching and binding in one machine to save labour cost and improve production effciency
2.One machine could handle notebook,desk calendar,calendar bind and punch work
3.Not only one machine do bind and punch ,could be use seperate do bind or seperate do punch.
4.Auto collect production and could be set in touch screen for numbers books finished then move
5.If customer choose hanger device,could be do straight hanger and auto drop.
6.Complete Punch mould include two small punch moulds,and small punching moulds could change position.
If you take interesting or still have questions,send me email,so easy.
