Fornecedor de máquinas de acabamento com perfuração e encadernação por fio duplo e espiral.
Fornecedor profissional de máquinas de encadernação e perfuração da China.
Fornecedor de máquinas de acabamento com perfuração e encadernação por fio duplo e espiral.
Fornecedor profissional de máquinas de encadernação e perfuração da China.
Detalhes do produto:
Condições de Pagamento e Envio:
|
| Material: | Ferro | Tamanho do punho: | Lado máximo da borda do punção 550mm |
|---|---|---|---|
| Aplicativo: | Punção de papel | Poder: | 3ph 380 V 50 Hz |
| Alimentação de papel: | Alimentador de duas facas | alimentador de cartão: | Por bocal de sucção de plástico |
| Coleta de papel: | Rolar coleta automática | coolect de papelão: | empurrar para fora entregar por transportador |
| Serviço pós -venda: | Engenheiro vai para o exterior fazer serviço | Garantia: | Garantia de 1 ano |
| Tipo: | máquina de perfuração de papel em automático |
Creative brand automatic hardcover punching machine SPB550 for print house
Description:
Automatic hardcover punching machine SPB550 is used in print facotry for doing hole punch or perforate work.could finish paper hole punching,calendar hole punch,and hardcover hole punch.
Wide range punch functon,with 1 machine could finish almost 3 production.Will be your good helper in wire o,double wire,twin ring wire,double o,spiral wire productions' produce.
With two knife feeder make you feeder paper smoothly and accurate,avoid paper appearance have scratch when feeder paper.
With suction nozzle,it could feeder cardboard or hardcover,punch one by one.
Advantage :
1. It’s wide applied for punching different paper size, max punching width 550mm and 3mm thickness of hardcover or cardboard.
2. Easy operation and high safety with protect cover and emergency stop.
3. To make special punching hole is available for the customer’s request within the size of paper.
4. High quality for punching without deckle edge and accurate punching position.
5.Use two knife feeder when do paper,use suction nozzle to feeder cardboard
Technical information:
| Max.sheet | 550mm x600 mm |
| Min.sheet | 120mm x 100 mm |
| Max punching thickness | 3mm |
| Weight of paper | 60 - 350 gsm |
| Punching speed | Up to 7200 punch times /hour |
| The max height of paper feeder | 500mm |
| Power | 3PH 380V 50HZ(other voltage on request) |
| Main motor power | 3KW |
| Dimension | 2.2 m x 1.3 m x 1.2 m |
| Net weight | 1600KG |
Application: do paper hole punch + do calendar hole punch + do cardboard hole punch
Do notebook loose leaf or common paper hole punch
Notebook paper or loose leaf hole punch video :
https://www.youtube.com/watch?v=OeiBMW1rpnQ ( in Turkey customer factory)
https://www.youtube.com/watch?v=kkFIUwg7jXY ( in Thailand customer factory)
Many customer care paper quality when punch hole,this machine do it more better ,as have two knife feeder,one knife up paper,let another knife feeder have space to go in,there is no scratch.
Do desk clanedar,notebook cover,cardboard,hard cover hole punch
Desk calendar Cover,cardboard,notebook hardcover hole punch video :
https://www.youtube.com/watch?v=024yJuSuIKA (turkey customer do desk calndar cover )
https://www.youtube.com/watch?v=IXl6-zMqFYU&t=4s (cover punch)
https://www.youtube.com/watch?v=LlUz693XwzA (Europe customer do cardboard )
Do desk clanedar cardboard,you need punch twice,one side punch and exchange another side to punch,if do notebook cover,no need.This machine speed very quick,hope you get this machine and then get more order.
Do calendar big size hole punch
Calendar hole punch,need big size punch machine,now this machine could handle your work.
Calendar punch machine 550 do calendar punch in customer facotry:
https://www.youtube.com/watch?v=VpTudyXT068&t=3s (big size )
Do desk clendar,believe many customer still use manual punch machine,so slow,please consider it if you budget enough,save labor cost.

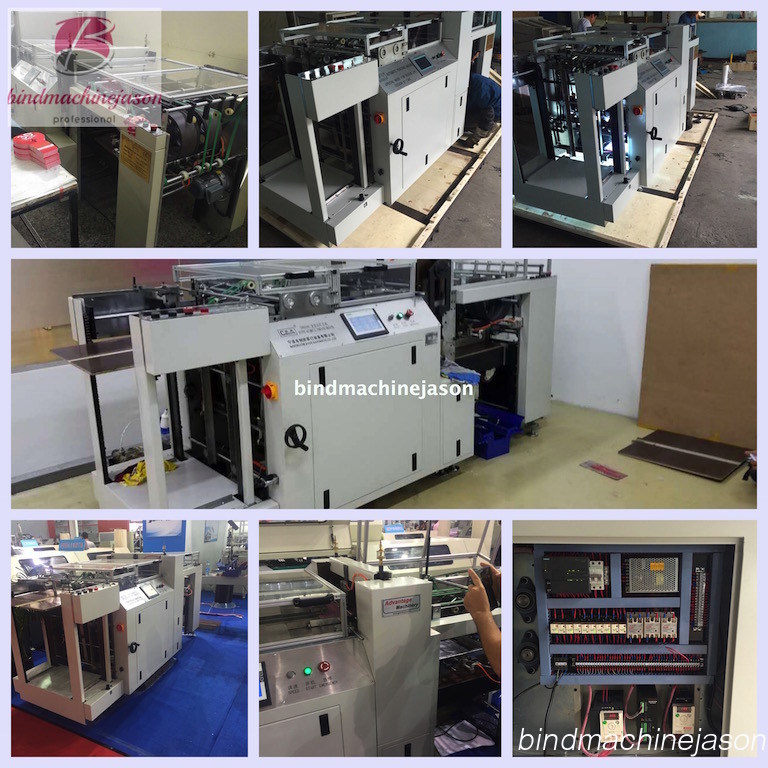

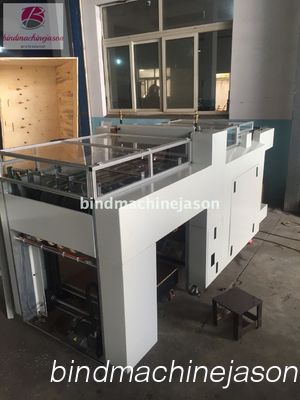

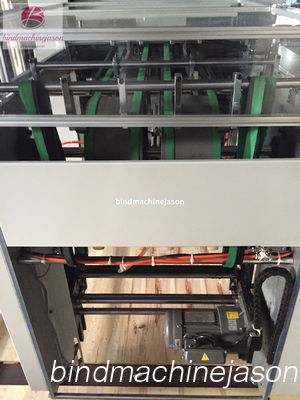

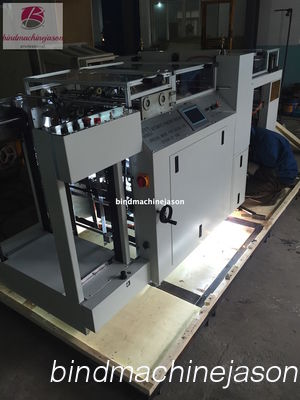

Additonal picture in package :
Machine have CE and already been export to many country,if you are in finding machine do hole job ,please contact me,will give you clealry and satisfied supoort.
