Detalhes do produto:
Condições de Pagamento e Envio:
|
| Material: | Use fio revestido de nylon | Fechadura Espiral: | tem trava em espiral |
|---|---|---|---|
| Tamanho espiral: | Diâmetro espiral de 8 mm - 32 mm | Aplicativo: | Encadernação espiral de caderno |
| Faixa de espessura do livro: | abaixo de 25 mm | Tipo: | máquina de ligação em espiral |
| Garantia: | 12 meses | serviços: | treinamento no exterior disponível |
| Tamanho do livro: | Tamanho máximo da borda de encadernação 420 mm | Alimentar: | Pegue o notebook com a mão para alimentar o gancho |
| Formação espiral: | Automático | Fechamento em espiral: | Automático |
| Poder: | 1ph 220V |

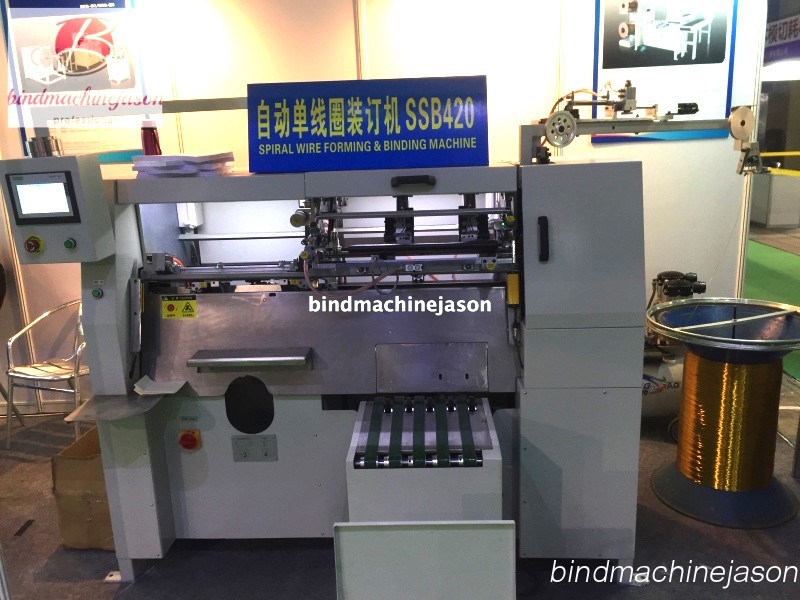

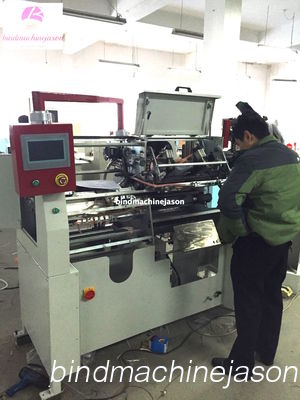

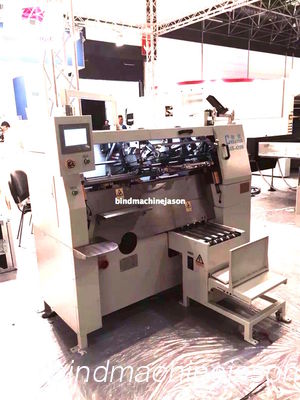

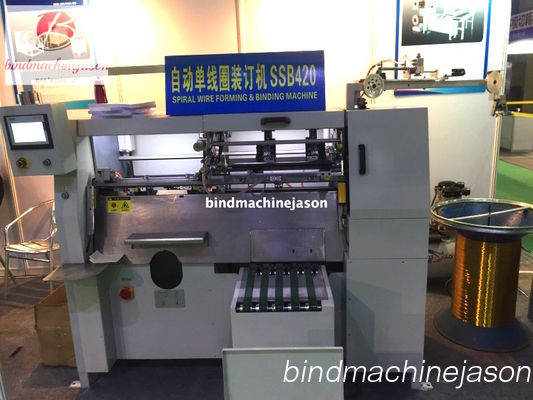

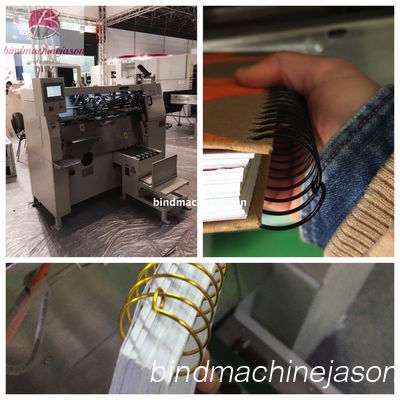

Semi automatic notebook spiral wire binding machine SSB420 with spiral lock
Notebook Spiral wire binding machine SSB420 used for spiral metal close,spiral metal bind is another bind method for notebook,also popular for market.Compare double wire bind,it save material,as only single coil,also the book used by single wire bind look more special.
Machine operational priciple :
Material nylon coated wire go straight by adjust device and be twist in the roll bar,the roll bar we also could call spiral forming bar,when spiral formed,worker put notebook in left feeder device,finish feeder action,notebook will be deliver to spiral bind work area,then knife cut,notebook drop down and deliver by conveyor.
Application:
Used for bind spiral notebooks in differ size
Video do spiral notebook in customer factory:
https://www.youtube.com/watch?v=L37oV0lFtUE
Other video bind big thickness book,ask me,will send you by whatapps.
Spiral notebook wire bind is another bind production,also popular in some area,this bind machine is mainly used do this work.Compare double wire bind,spiral bind more complex.
Now we break it,and help our customer solved big thickness notebook. Many customer met thickness book,common use hand work,time cost and differ to arrange.This machine max could do wire diameter 32mm,commonly could spiral close 25mm around thickness books.
Even if you have spiral metal bind machine,some notebooks with differ page size also differ to handle.We also solve this problem,as this book feeder by hand hang in machine feeder hooks,it will be more accurate let the spiral mark hole and inside perfect.
Let means Notebook spiral bind edge length below 420mm,and thickness below 25mm,all could be finish.
Technical information :
Spiral diameter range
| Diameter(mm) | Line Diameter(mm) | Aperture(mm) | Binding thickness(mm) |
| 8 | 0.7-0.8 | Φ3.0 | 5 |
| 10 | 0.7-0.8 | Φ3.0 | 7 |
| 12 | 0.8-0.9 | Φ3.5 | 9 |
| 14 | 1.0-1.1 | Φ4.0 | 11 |
| 16 | 1.0-1.1 | Φ4.0 | 12 |
| 18 | 1.0-1.1 | Φ4.0 | 14 |
| 20 | 1.1-1.2 | Φ4.0 | 15 |
| 22 | 1.1-1.2 | Φ5.0 | 17 |
| 25 | 1.1-1.2 | Φ5.0 | 20 |
| 28 | 1.2-1.3 | Φ5.0 | 23 |
| 32 | 1.2-1.4 | Φ5.0 | 26 |
Spiral metal bind machine technical data
| Speed | 600-900 books/hour |
| Air Pressure | 5-8 Kgf |
| Wire Diameter | 8-32mm |
| Binding size | 75mm-420mm |
| Power | 1PH 220V 50/60HZ(other voltage on request |
| size | 1900mmx700mx1600mm |
| Net weight | 600Kg |
Advantage compare similar machine:
1.Wide range productions could be handle,can not find in chinese market another machine which could handle this
2.Special bind structure which is differ from other similar machine
3.Good test in china and egypt market already,no need care it function
PDF download spiral binding machine SSB420.pdf
If you take interesting or have some thing not clearly,send me email,so easy
